Power Press
Power press - C TYPE
SPECIFICATION :
HYPES AND AND CAPACITY :
Presses are available in capacities of 3 to 300 tonnes in single geared/ double geared and un-geared types “C” type and pillar type models. and also available inclinable type and permanently inclinable type models these machines are subjected to stringent performance testing using advanced testing devices to ensure high performance, increased productivity & reliability.•
FRAME :
The robust frame is fabricated from solid steel plates with heavy cross ribbing to main housing & ” C” Supports for perfectly balanced distribution of stress over the cross section elimination deflection and vibration and thus improving die & machine life.
CRANK SHAFT :
Eccentric crank shaft is machined form en-9 steel round bar. it has been groung finished on bearing surface. the main crank shaft & eccentric bearings are covered with high quality of phosphor-bronze or gun metal bushes and lubrication oil grooves for smooth functioning.
CLUTCH & KEYS :
Rolling key type clutch is manufactured from wps material duly heat treated to provide long trouble free services.
STROKE ADJUSTMENTS :
The unique feature of adjustable stroke enable the press to perform all kinds of operations by employing short stroke for blanking & forming operations.
BRAKE :
Spring operated powerful heavy duty brakes is of release type works according to timing adjustment to provide longer life to the brake. it is operated by cam wheel or brake wheel.
RAM & RAM SLIDE :
The ram slide is machined form high grade cast iron & seasonal high grade castings the bearing surface are hand scrapped for perfect aligment, ensuring longer life of die & easy operation.
ACCESSORIES ( STANDARED ) :
Motor stand, motor pully, main gear cover, fly wheel cover, stude drive for scruew.
TECHNICAL SPECIFICATION OF "C" TYPE POWER PRESS
| DESCRIPTION | VPP | VPP-0 | VPP-1 | VPP-2 | VPP-3 | VPP-4 | VPP-5 | VPP-6 | VPP-7 | VPP-8 | VPP-9 | VPP-10 | VPP-11 | VPP-12 | |
| CAPACITY | TONNE | 3 | 5 | 10 | 20 | 30 | 40 | 50 | 60 | 80 | 100 | 150 | 200 | 250 | 300 |
| STROKE ADJUSTMENT | MM | 25 | 25 | 50 | 75 | 75 | 75 | 88 | 88 | 102 | 114 | 127 | 127 | 152 | 152 |
| RAM ADJUSTMENT | MM | 20 | 25 | 25 | 38 | 38 | 38 | 50 | 50 | 50 | 63 | 63 | 70 | 70 | 75 |
| HOLE IN RAM | MM | 19 | 25 | 25 | 32 | 38 | 38 | 45 | 51 | 51 | 63 | 63 | 63 | 63 | 63 |
| BED TO RAM DIST. | MM | 150 | 205 | 230 | 260 | 285 | 300 | 360 | 370 | 410 | 410 | 410 | 432 | 485 | 508 |
| DEPTH OF THROAT | MM | 75 | 88 | 114 | 165 | 190 | 190 | 203 | 240 | 265 | 290 | 305 | 330 | 355 | 380 |
| BED SIZE : LEFT TO RIGHT | ( LENGTH MM) | 254 | 305 | 381 | 482 | 533 | 610 | 660 | 685 | 712 | 813 | 914 | 965 | 1065 | 1115 |
| FRONT TO BACK | (WIDTH MM) | 150 | 178 | 228 | 330 | 381 | 405 | 430 | 480 | 533 | 584 | 610 | 660 | 712 | 760 |
| I. HOLE IN BED | MM | 45 | 50 | 70 | 88 | 95 | 110 | 120 | 127 | 140 | 152 | 178 | 190 | 203 | 203 |
| f BOOR TO TOP OF BED | MM | 533 | 620 | 725 | 810 | 810 | 890 | 940 | 940 | 940 | 940 | 940 | *** | *** | *** |
| STROKE PER MINUTE | |||||||||||||||
| DOUBLE GEARED | NOS. | *** | *** | *** | 50 | 40 | 38 | 35 | 30 | 27 | 28 | *** | *** | *** | *** |
| SINGLE GEARED | NOS. | 70 | 65 | 60 | 55 | 50 | 50 | 45 | 40 | … 40 | 35 | , 35 | 30 | 30 | 25 |
| UN-GEARED | NOS. | 150 | 150 | 120 | 120 | *** | *** | ‘ | *** | *** | *** | *** | *** | *** | *** |
| MOTOR H.P. / KW. | H.P | 0.5/0.37 | 0.5/0.37 | 1/0.75 | 2/1.5 | 3/2.2 | 5/3.7 | 5/3.7 | 7.5/5.6 | 7.5/5.6 | 10/7.7 | 15/11.2 | 20/15 | 25/18.7 | 30/22.7 |
| MOTO RPM | UN-GEARED | 960 | 960 | 960 | 960 | 960 | 960 | 960 | 960 | 960 | 960 | 960 | 960 | 960 | 960 |
| I MOTO RPM | GEARED | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 |

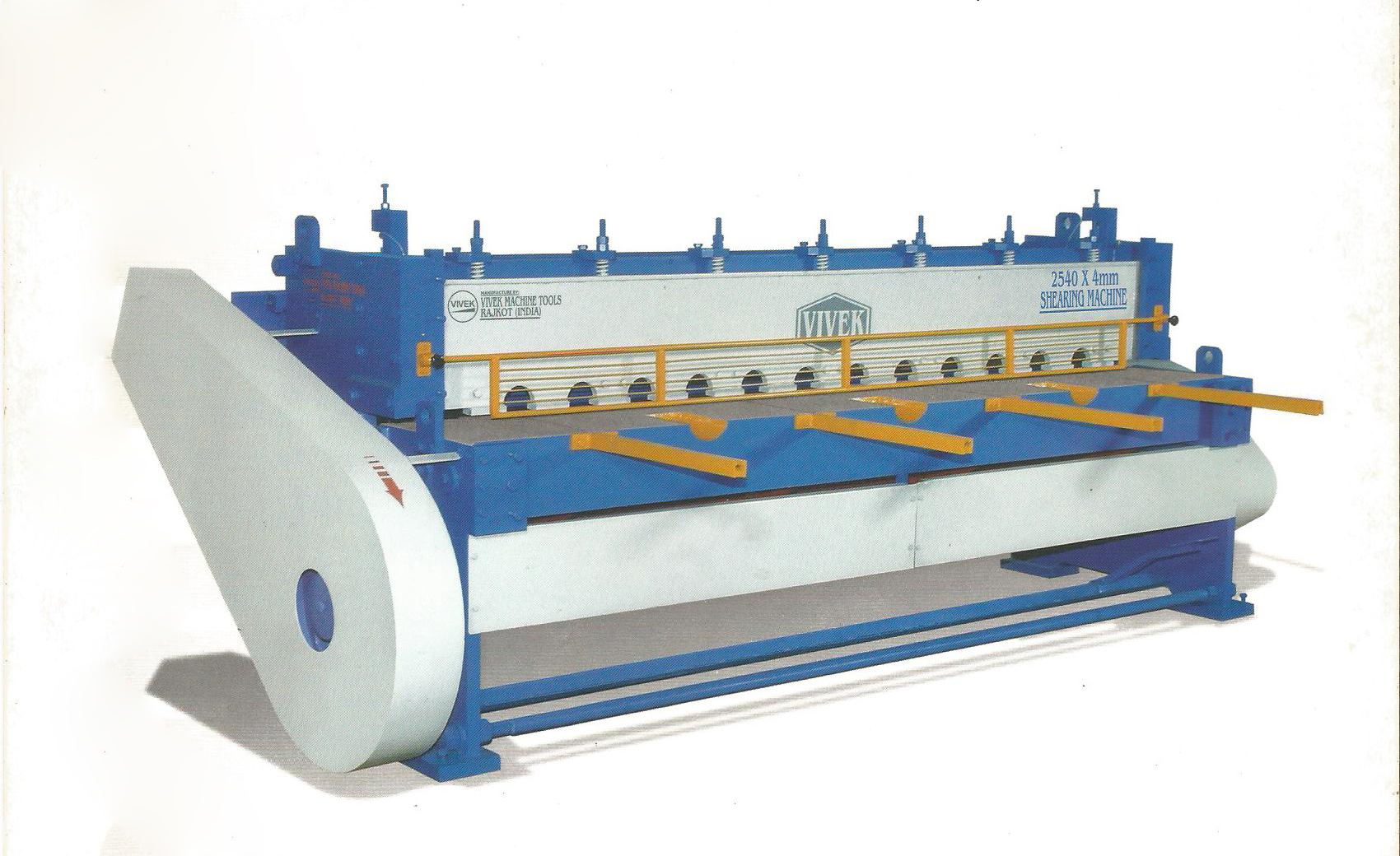

Under Crank Shearing
| MODEL | CUTTING CAP IN (MS) L x THK. | STROKE PER MINUTE | TABLE HEIGHT HEIGHT | TABLE WIDTH | FRONT GAUGE | REAR GAUGE | MOTOR H.P. / KW. | BLADE LENTH WIDTH x THICK | OVERALL DIM IN MM | ||
| L | W. | H. | |||||||||
| VUS-1 | 1270 x 2 | 55 | 800 | 400 | 600 | 750 | 2 / 1.5 | 1270x 63 x 14 | 2100 | 1900 | 1300 |
| VUS-2 | 1525 x 2 | 55 | 800 | 400 | 600 | 750 | 3 / 2.2 | 1525 x 63x 14 | 2360 | 1900 | 1300 |
| VUS-3 | 2030 x 2 | 55 | 800 | 400 | 600 | 750 | 5 / 3.7 | 2030 x 63 x14 | 2825 | 1900 | 1300 |
| VUS-4 | 2540 x 2 | 55 | 800 | 400 | 600 | 750 | 5 / 3.7 | 2540x 63 x14 | 3325 | 1900 | 1300 |
| VUS-5 | 3125 x 2 | 55 | 800 | 400 | 600 | 750 | 7.5 / 5.6 | 3125 x 63 x 14 | 3910 | 1900 | 1300 |
| VUS-6 | 1270 x 4 | 50 | 800 | 400 | 600 | 750 | 5 / 3.7 | 1270 x 75 x 18 | 2300 | 2000 | 1350 |
| VUS-7 | 1525 x 4 | 50 | 800 | 400 | 600 | 750 | 5 / 3.7 | 1525 x 75 x 18 | 2550 | 2000 | 1350 |
| VUS-8 | 2030 x 4 | 50 | 800 | 400 | 600 | 750 | 7.5 / 5.6 | 2030 x 75 x 18 | 3100 | 2000 | 1350 |
| VUS-9 | 2540 x 4 | 50 | 800 | 400 | 600 | 750 | 7.5 / 5.6 | 2540 x 75 x 18 | 3600 | 2000 | 1350 |
| VUS-10 | 3125 x 4 | 50 | 800 | 400 | 600 | 750 | 10 / 7.7 | 3125 x 75 x 18 | 4200 | 2000 | 1350 |
